1W 225nm UVC Pick up 233.8nm Led Optical Power 2-3mW 6-8V 150mA SMD 3.8mm UV-C LEDs Diode 60° Dome Lens

1W 225nm UVC Pick up 233.8nm Led Optical Power 2-3mW 6-8V 150mA SMD 3.8mm UV-C LEDs Diode 60° Dome Lens
1W 225nm UVC Pick up 233.8nm Led Optical Power 2-3mW 6-8V 150mA SMD 3.8mm UV-C LEDs Diode 60° Dome Lens 1W 225nm UVC Pick up 233.8nm Led Optical Power 2-3mW 6-8V 150mA SMD 3.8mm UV-C LEDs Diode 60° Dome Lens 1W 225nm UVC Pick up 233.8nm Led Optical Power 2-3mW 6-8V 150mA SMD 3.8mm UV-C LEDs Diode 60° Dome Lens 1W 225nm UVC Pick up 233.8nm Led Optical Power 2-3mW 6-8V 150mA SMD 3.8mm UV-C LEDs Diode 60° Dome Lens 1W 225nm UVC Pick up 233.8nm Led Optical Power 2-3mW 6-8V 150mA SMD 3.8mm UV-C LEDs Diode 60° Dome Lens 1W 225nm UVC Pick up 233.8nm Led Optical Power 2-3mW 6-8V 150mA SMD 3.8mm UV-C LEDs Diode 60° Dome Lens

Gambar besar :  1W 225nm UVC Pick up 233.8nm Led Optical Power 2-3mW 6-8V 150mA SMD 3.8mm UV-C LEDs Diode 60° Dome Lens

Detail produk:
Tempat asal: Guangdong, Tiongkok
Nama merek: Learnew
Syarat-syarat pembayaran & pengiriman:
Kuantitas min Order: 5
Kontak

1W 225nm UVC Pick up 233.8nm Led Optical Power 2-3mW 6-8V 150mA SMD 3.8mm UV-C LEDs Diode 60° Dome Lens

Deskripsi
Bahan chip: Ingan Tegangan Masukan: 6-8V
Suhu Operasional: -40 - 80 ℃ Kekuatan: 1W
Pembuangan Daya: 0.4 Berat Produk: 0,1Kg
Suhu Penyimpanan: -40 - 110 ℃ Sudut Pandang: 120°;60°
Panjang gelombang: 225-235nm Arus Maju: 100-150mA
Tegangan Maju: 6-8V Ukuran: 3.8*3.8MM
Daya optik: 2-3mW Substrat: Aln Coppering
Lensa: Lensa kaca kuarsa
Menyoroti:

1W 225nm UVC LED diode

,

3.8mm UV-C LED chip

,

60° dome lens UV LED

1W 225nm UVC Pick up 233.8nm LED Optical Power 2-3mW 6-8V 150mA SMD 3.8mm UV-C LEDs Diode 60° Dome Lens
1W 225nm UVC Pick up 233.8nm Led Optical Power 2-3mW 6-8V 150mA SMD 3.8mm UV-C LEDs Diode 60° Dome Lens 0 1W 225nm UVC Pick up 233.8nm Led Optical Power 2-3mW 6-8V 150mA SMD 3.8mm UV-C LEDs Diode 60° Dome Lens 1
Product Specifications
Optical Power 2-3mW
Operating Voltage 6-8V
Current Rating 150mA
Package Type SMD 3.8mm
Wavelength 225nm UVC (Peak 233.8nm)

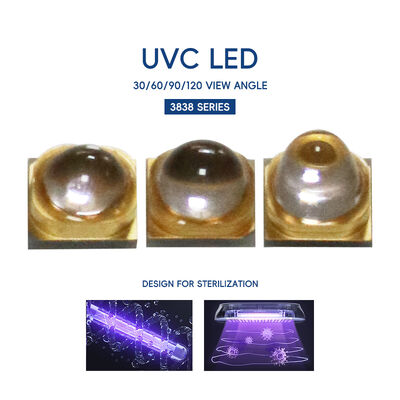

Lens Type 60° Dome Lens
Power Rating 1W
Key Features
  • High-efficiency UV-C emission for sterilization applications
  • Compact SMD package for easy integration
  • Dome lens provides optimized light distribution
  • Reliable performance with precise wavelength control
  • Suitable for various disinfection and purification systems
Product Images
1W 225nm UVC Pick up 233.8nm Led Optical Power 2-3mW 6-8V 150mA SMD 3.8mm UV-C LEDs Diode 60° Dome Lens 2 1W 225nm UVC Pick up 233.8nm Led Optical Power 2-3mW 6-8V 150mA SMD 3.8mm UV-C LEDs Diode 60° Dome Lens 3 1W 225nm UVC Pick up 233.8nm Led Optical Power 2-3mW 6-8V 150mA SMD 3.8mm UV-C LEDs Diode 60° Dome Lens 4 1W 225nm UVC Pick up 233.8nm Led Optical Power 2-3mW 6-8V 150mA SMD 3.8mm UV-C LEDs Diode 60° Dome Lens 5 1W 225nm UVC Pick up 233.8nm Led Optical Power 2-3mW 6-8V 150mA SMD 3.8mm UV-C LEDs Diode 60° Dome Lens 6 1W 225nm UVC Pick up 233.8nm Led Optical Power 2-3mW 6-8V 150mA SMD 3.8mm UV-C LEDs Diode 60° Dome Lens 7 1W 225nm UVC Pick up 233.8nm Led Optical Power 2-3mW 6-8V 150mA SMD 3.8mm UV-C LEDs Diode 60° Dome Lens 8 1W 225nm UVC Pick up 233.8nm Led Optical Power 2-3mW 6-8V 150mA SMD 3.8mm UV-C LEDs Diode 60° Dome Lens 9 1W 225nm UVC Pick up 233.8nm Led Optical Power 2-3mW 6-8V 150mA SMD 3.8mm UV-C LEDs Diode 60° Dome Lens 10
Customization Services
1W 225nm UVC Pick up 233.8nm Led Optical Power 2-3mW 6-8V 150mA SMD 3.8mm UV-C LEDs Diode 60° Dome Lens 11 1W 225nm UVC Pick up 233.8nm Led Optical Power 2-3mW 6-8V 150mA SMD 3.8mm UV-C LEDs Diode 60° Dome Lens 12 1W 225nm UVC Pick up 233.8nm Led Optical Power 2-3mW 6-8V 150mA SMD 3.8mm UV-C LEDs Diode 60° Dome Lens 13
Company Information
1W 225nm UVC Pick up 233.8nm Led Optical Power 2-3mW 6-8V 150mA SMD 3.8mm UV-C LEDs Diode 60° Dome Lens 14
Industry Exhibitions
1W 225nm UVC Pick up 233.8nm Led Optical Power 2-3mW 6-8V 150mA SMD 3.8mm UV-C LEDs Diode 60° Dome Lens 15
Partnership Network
1W 225nm UVC Pick up 233.8nm Led Optical Power 2-3mW 6-8V 150mA SMD 3.8mm UV-C LEDs Diode 60° Dome Lens 16
Quality Certifications
1W 225nm UVC Pick up 233.8nm Led Optical Power 2-3mW 6-8V 150mA SMD 3.8mm UV-C LEDs Diode 60° Dome Lens 17
Delivery & Shipping
1W 225nm UVC Pick up 233.8nm Led Optical Power 2-3mW 6-8V 150mA SMD 3.8mm UV-C LEDs Diode 60° Dome Lens 18
Frequently Asked Questions
1W 225nm UVC Pick up 233.8nm Led Optical Power 2-3mW 6-8V 150mA SMD 3.8mm UV-C LEDs Diode 60° Dome Lens 19
Who are we?
We specialize in the design, production, and sales of UV-C LED components with 18 years of industry experience, serving customers with precision engineering and quality commitment.
How do we guarantee quality?
We conduct pre-production sampling and final inspection before shipment to ensure every product meets our stringent quality standards.
What products do we offer?
We provide UV-C LEDs, SMD LED components, customized LED solutions, and various optoelectronic products for sterilization and purification applications.
Why choose us over other suppliers?
We are committed to becoming a leading innovative UV-C LED supplier, serving numerous international brands and helping them create competitive advantages through reliable components.
What services do we provide?
We accept various delivery terms (FOB, CFR, CIF, EXW, etc.) and payment methods (T/T, L/C, Credit Card, PayPal, etc.), with support in multiple languages including English and Chinese.
