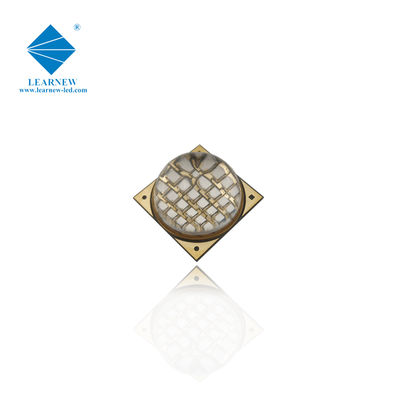

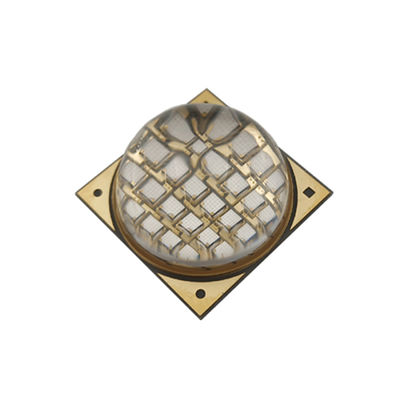

100W 395nm 60-90deg UVA LED COB Chip for UV Curing with Quartz Glass Lens

100W 395nm 60-90deg UVA LED COB Chip for UV Curing with Quartz Glass Lens
100W 395nm 60-90deg UVA LED COB Chip for UV Curing with Quartz Glass Lens 100W 395nm 60-90deg UVA LED COB Chip for UV Curing with Quartz Glass Lens 100W 395nm 60-90deg UVA LED COB Chip for UV Curing with Quartz Glass Lens 100W 395nm 60-90deg UVA LED COB Chip for UV Curing with Quartz Glass Lens 100W 395nm 60-90deg UVA LED COB Chip for UV Curing with Quartz Glass Lens 100W 395nm 60-90deg UVA LED COB Chip for UV Curing with Quartz Glass Lens

Gambar besar :  100W 395nm 60-90deg UVA LED COB Chip for UV Curing with Quartz Glass Lens

Detail produk:
Tempat asal: Guangdong, Cina
Nama merek: LEARNEW
Syarat-syarat pembayaran & pengiriman:
Kuantitas min Order: 10
Kontak

100W 395nm 60-90deg UVA LED COB Chip for UV Curing with Quartz Glass Lens

Deskripsi
Kekuatan: 100W Panjang gelombang: 395nm
Sudut pandang: 60-90° Tegangan input: 48-54V
Arus input: 2100mA (Maks=3A) Suhu operasi: -20 - 65 ℃
Suhu penyimpanan: -40 - 110 ℃ Bahan chip: Ingan
Substrat: Aln Coppering Lensa: Kaca kuarsa
Ukuran: 16*16MM Daya optik: 42000-50000MW
Area pencahayaan: R15MM Chip LED: Vertikal (LG atau HPO)
Jam kerja: 10000
Menyoroti:

100W UV LED Chip

,

395nm UVA LED COB Chip

,

60-90deg UV COB LED

100W UVA LED COB Chip - 365nm/395nm for UV Curing
100W 395nm 60-90deg UVA LED COB Chip for UV Curing with Quartz Glass Lens 0 100W 395nm 60-90deg UVA LED COB Chip for UV Curing with Quartz Glass Lens 1
Applications
  • UV Curing
  • Endoscopy
  • Coatings and inks
  • Silk-screen printing
  • Maskless Lithography
  • 3D flatbed printing
  • PCB exposure machine
  • Medical & industrial grade products
Product Specifications
Product Name 100W 395nm 60-90deg UVA LED COB Chip
Power Dissipation 100W
Input Current 2100mA (Max=3A)
Input Voltage 48-54V
Whole Size 16×16mm
Lens Quartz Glass Lens
View Angle 60-90°
Chips PKG Model Vertical (LG or HPO)
Substrate Load ALN Copper
Manufacturer Learnew Opto

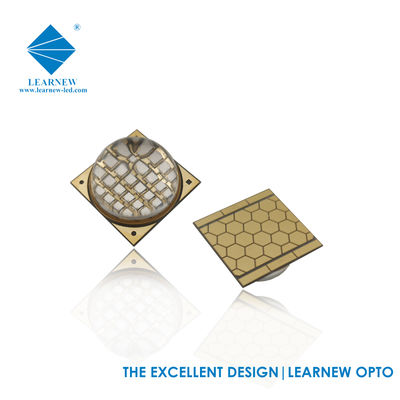

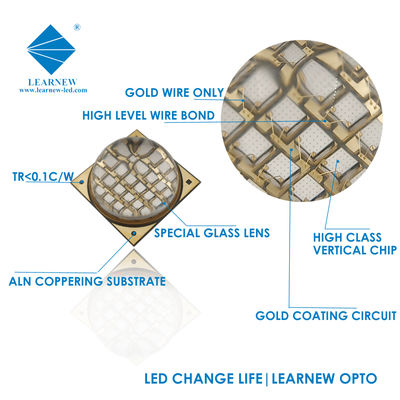

Design Advantages
  • Long life span
  • Low thermal resistance
  • High efficiency (40%-50%)
  • Inorganic encapsulation
  • High density and intensity
  • Screw-free assembly for high power curing use
100W 395nm 60-90deg UVA LED COB Chip for UV Curing with Quartz Glass Lens 2 100W 395nm 60-90deg UVA LED COB Chip for UV Curing with Quartz Glass Lens 3 100W 395nm 60-90deg UVA LED COB Chip for UV Curing with Quartz Glass Lens 4
Frequently Asked Questions
Q1: Do you supply OEM/ODM service?
A1: Yes, we can accommodate custom requirements.
Q2: Are all pictures real photos?
A2: Yes, all product images are 100% authentic.
Q3: How can I get a quotation?
A3: Please provide your requirements including products and quantity. Our team will respond promptly.
Q4: Is there bulk order discount?
A4: Yes, we offer wholesale pricing for bulk orders.
Q5: Do you support drop shipping?
A5: Yes, shipping costs are calculated based on order volume and weight.
Q6: How to place an order?
A6: Contact us via email or online messaging for order placement.
Q7: What payment methods do you accept?
A7: T/T, PayPal, Western Union, and Secure Payment.
Q8: What is the lead time?
A8: Typically 3-75 working days depending on order quantity.
Packaging & Shipping
100W 395nm 60-90deg UVA LED COB Chip for UV Curing with Quartz Glass Lens 5
