SMD 3030 LED Chip 1W 3.0-3.4V 120° Viewing Angle for LED Lamps

SMD 3030 LED Chip 1W 3.0-3.4V 120° Viewing Angle for LED Lamps
SMD 3030 LED Chip 1W 3.0-3.4V 120° Viewing Angle for LED Lamps SMD 3030 LED Chip 1W 3.0-3.4V 120° Viewing Angle for LED Lamps SMD 3030 LED Chip 1W 3.0-3.4V 120° Viewing Angle for LED Lamps SMD 3030 LED Chip 1W 3.0-3.4V 120° Viewing Angle for LED Lamps SMD 3030 LED Chip 1W 3.0-3.4V 120° Viewing Angle for LED Lamps SMD 3030 LED Chip 1W 3.0-3.4V 120° Viewing Angle for LED Lamps

Gambar besar :  SMD 3030 LED Chip 1W 3.0-3.4V 120° Viewing Angle for LED Lamps

Detail produk:
Tempat asal: Guangdong, Cina
Nama merek: learnew
Syarat-syarat pembayaran & pengiriman:
Kuantitas min Order: 500
Kontak

SMD 3030 LED Chip 1W 3.0-3.4V 120° Viewing Angle for LED Lamps

Deskripsi
Kemanjuran bercahaya: 200lm/w-220lm/w Indeks rendering warna: 80
Suhu warna: 3000K 4000K 6000K Tegangan input: 3.0-3.4v
Suhu operasi: -40 - 80 ℃ Kekuatan: 1w
Suhu penyimpanan: -40 - 100 ℃ Sudut pandang: 120 °
Panjang gelombang: 3000-3500K; 4000-4500K; 6000-6500K Arus ke depan: 150mA
Tegangan ke depan: 3.0-3.4v Bahan: 99,99% kawat emas
Ukuran: 3.0*3.0mm Substrat: PCT
Sirkuit: 1 pcs secara seri; 1 pcs secara paralel
Menyoroti:

SMD 3030 LED chip 1W

,

SMD 3030 LED chip 120° viewing angle

,

SMD LED chip 3.0-3.4V

SMD 3030 LED Diode Light - OEM/ODM
High quality 3030 3V 1W SMD LED with Epistar/San'an/Bridgelux chips for LED lamps. Available in 3000K, 4000K, and 6000K white color temperatures.
Product Specifications
Product Name Plant Grow Lights SMD LED Chip 3030
Power Dissipation 0.5W; 1W
Dominant Wavelength 3000-3500K, 4000-4500K, 6000-6500K, 520-530nm (custom options available)
Circuit 1PCS in series; 1PCS in parallel
Size 3.0 × 3.0mm
Substrate PCT
View Angle 120°
Manufacturer LEARNEW OPTO
Design Advantages
  • PCT leadframe for better heat transfer
  • Standard A Class chips
  • Excellent cost performance
  • Gold wire bond construction
  • Special lens for optimal light distribution
  • High PPF (Photosynthetic Photon Flux)
  • Pure color in 2.5nm range

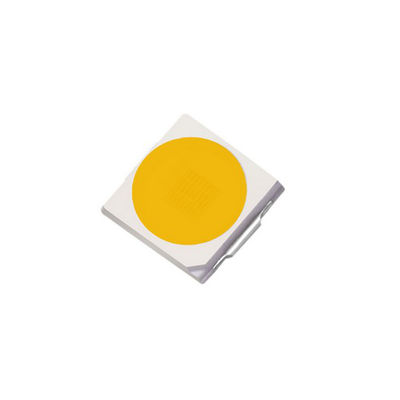

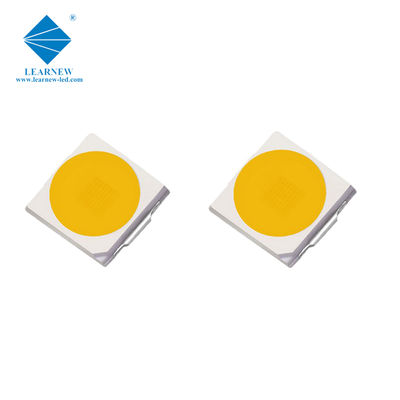

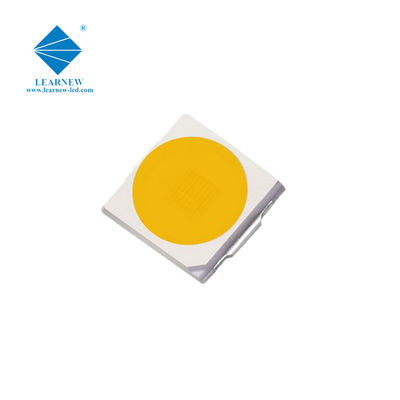

Product Images
SMD 3030 LED Chip 1W 3.0-3.4V 120° Viewing Angle for LED Lamps 0 SMD 3030 LED Chip 1W 3.0-3.4V 120° Viewing Angle for LED Lamps 1 SMD 3030 LED Chip 1W 3.0-3.4V 120° Viewing Angle for LED Lamps 2 SMD 3030 LED Chip 1W 3.0-3.4V 120° Viewing Angle for LED Lamps 3
Custom Services
We support custom specifications and configurations to meet your specific requirements.
SMD 3030 LED Chip 1W 3.0-3.4V 120° Viewing Angle for LED Lamps 4 SMD 3030 LED Chip 1W 3.0-3.4V 120° Viewing Angle for LED Lamps 5
Frequently Asked Questions
Q1: Do you supply OEM/ODM service?
A1: Yes, we absolutely can accommodate OEM and ODM requests.
Q2: Are all the pictures real photos?
A2: Yes, all product images on this page are 100% authentic photographs taken by us.
Q3: How can I get a quotation?
A3: Please send us your requirements including products and quantities. Our team will respond promptly (usually within a few hours).
Q4: Is there bulk order discount?
A4: Yes, we offer wholesale pricing for bulk orders and customized products.
Q5: Do you support dropshipping?
A5: Yes, we support dropshipping. Shipping costs are calculated based on order volume and weight.
Q6: How to place an order?
A6: Contact us via email or online messenger. We respond within 24 hours on business days.
Q7: What payment methods do you accept?
A7: We accept T/T, PayPal, Western Union, and Secure Payment.
Q8: What is the lead time?
A8: Typically 3-75 working days depending on order quantity. Samples can ship same day.
SMD 3030 LED Chip 1W 3.0-3.4V 120° Viewing Angle for LED Lamps 6

Label:

PCT Substrat SMD LED Diode,

18lm SMD LED Chips,

660nm LED SMD Diode
