Detail produk:
|
Nama produk: | Chip cob LED bertenaga tinggi | Konsumsi Daya: | 5w 10w 20w 30w 50w 100w 200w |
---|---|---|---|
Suhu Warna: | 3000K/4000K/6500K | Efisiensi: | 110-130LM/W |
VF: | 35-38V | Keripik: | FLIP CHIP |
sudut pandang: | 120 derajat | CRI: | Ra80 Ra90 Ra95 Ra98 |
Substrat: | Aluminium atau Tembaga | Ukuran: | 1414 1919 2828 3838 4046 |
Menyoroti: | Chip LED COB 36V,Chip LED COB 3000K,LED COB 6500K 36V |

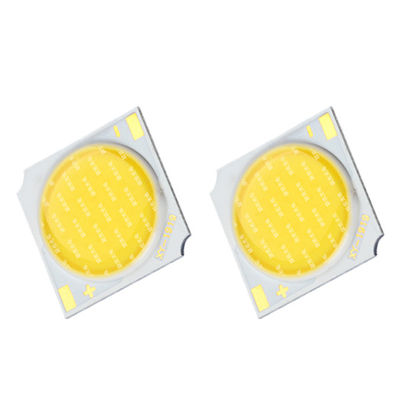

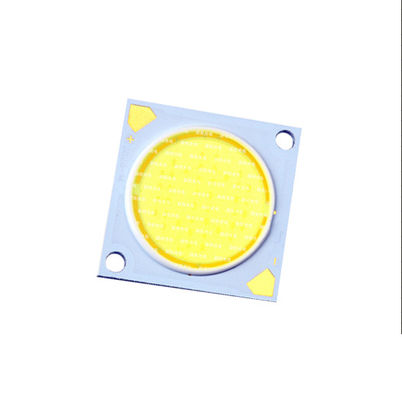

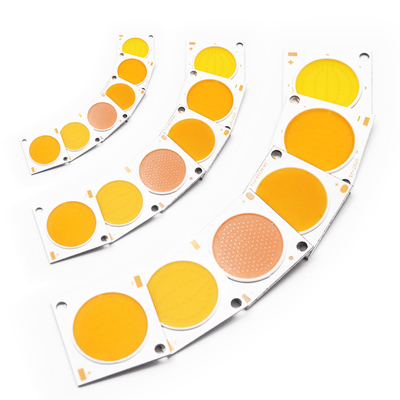

CRI tinggi 3000K 4000K 6500K 36V COB LED Chips Substrat tembaga aluminium
5w 10w 20w 30w 50w 100w 200w efisiensi tinggi CRI tinggi 36v 3000K/4000K/6500K warna putih dan hangat warna putih LED COB chip
Model | Mengkonsumsi daya | CCT | LM/W | Jika | VF | Sirkuit | CHIPS | Ukuran Seluruh | Ukuran emisi | Sudut pandang | CRI | Substrat |
Seri 1414 | 10-15W | 2700-6500K | 110-130lm/w | 280-400mA | 35-38V | 12S2P | Flip chip | 13.5*13.5mm | R10.5mm | 120DEG | Ra> 80 | Super aluminium |
Seri 1414 | 15-30W | 2700-6500K | 110-130lm/w | 400-800mA | 35-38V | 12S4P | Flip chip | 13.5*13.5mm | R10.5mm | 120DEG | Ra> 80 | Super aluminium |
Seri 1919 | 25-35W | 2700-6500K | 110-130lm/w | 700-1000mA | 35-38V | 12S4P | Flip chip | 19*19mm | R17mm | 120DEG | Ra> 80 | Super aluminium |
Seri 1919 | 35-50W | 2700-6500K | 110-130lm/w | 900-1200mA | 35-38V | 12S7P | Flip chip | 19*19mm | R17mm | 120DEG | Ra> 80 | Super aluminium |
Seri 2828 | 40-60W | 2700-6500K | 110-130lm/w | 1100-1500mA | 35-38V | 12S8P | Flip chip | 28*28mm | R23mm | 120DEG | Ra> 80 | Super aluminium |
Seri 2828 | 50-80W | 2700-6500K | 110-130lm/w | 1350-2200mA | 35-38V | 12S12P | Flip chip | 28*28mm | R23mm | 120DEG | Ra> 80 | Super aluminium |
Seri 3838 | 75-150W | 2700-6500K | 110-130lm/w | 2100-4000mA | 35-38V | 12S30P | Flip chip | 38*38mm | R30mm | 120DEG | Ra> 80 | Super aluminium |
Seri 4046 | 40-60W | 2700-6500K | 110-130lm/w | 1250-1800mA | 30-34V | 10S10P | Flip chip | 40*46mm | 25*25mm | 120DEG | Ra> 80 | Super aluminium |
Seri 4046 | 80-120W | 2700-6500K | 110-130lm/w | 2500-4000mA | 30-34V | 10S21P | Flip chip | 40*46mm | 25*25mm | 120DEG | Ra> 80 | Super aluminium |
Seri 4046 | 150-200W | 2700-6500K | 110-130lm/w | 3500-4500mA | 42-48V | 14S30P | Flip chip | 40*46mm | 25*25mm | 120DEG | Ra> 80 | Su |
