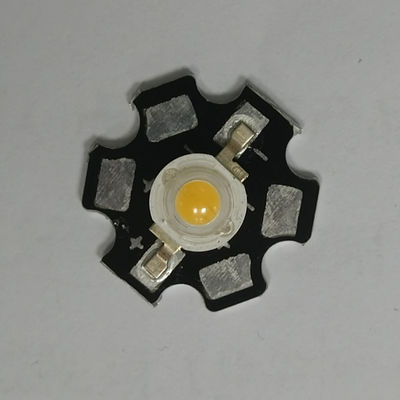

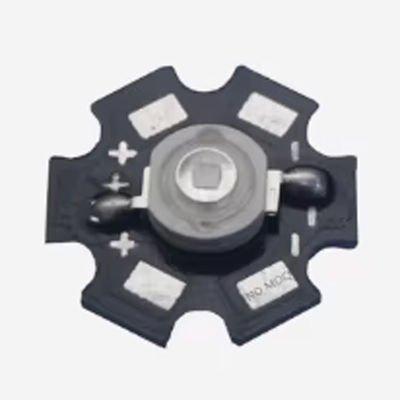

High Power SMD RGBW LED Chip 1-4W 120° Viewing Angle

High Power SMD RGBW LED Chip 1-4W 120° Viewing Angle
High Power SMD RGBW LED Chip 1-4W 120° Viewing Angle High Power SMD RGBW LED Chip 1-4W 120° Viewing Angle High Power SMD RGBW LED Chip 1-4W 120° Viewing Angle High Power SMD RGBW LED Chip 1-4W 120° Viewing Angle High Power SMD RGBW LED Chip 1-4W 120° Viewing Angle High Power SMD RGBW LED Chip 1-4W 120° Viewing Angle

Gambar besar :  High Power SMD RGBW LED Chip 1-4W 120° Viewing Angle

Detail produk:
Place of Origin: Guangdong, China
Nama merek: LearnewOpto
Syarat-syarat pembayaran & pengiriman:
Minimum Order Quantity: 5000
Kontak

High Power SMD RGBW LED Chip 1-4W 120° Viewing Angle

Deskripsi
Color Temperature: 2700K-6500K Input Voltage: AC 220V( ± 10%)
Lifespan: 10000 hours Product Weight: 0.5 kg
Optical Attenuation: 0.03% Chip Material: INGAN
Emitting Color: RGBW Power: 1-4W
Power Dissipation: 0.4 Viewing Angle: 120°
Color Rendering Index: 95 Operating Temperature: -20 - 80℃
Storage Temperature: -40 - 110℃ Forward Current: 350-700mA
Forward Voltage: 2.0-3.4V
Menyoroti:

SMD RGBW LED chip 1-4W

,

High power LED COB chip

,

RGBW LED chip 120° viewing angle

High Power LED SMD RGB RGBW 2pin 4X1W Rgbw Led 8 Pin 3X1W Rgb Led 6 Pin LED
Product Specifications
Color Temperature (CCT) 2700K (Soft Warm White), 6000K (Daylight Alert)
Input Voltage AC 220V( ± 10%)
Warranty 3-Year
Type SMD LED, High Power SMD RGB RGBW
Support Dimmer Yes
Lighting Solutions Service Lighting and circuitry design, LitePro DLX layout, auto CAD layout
Lifespan 10,000 hours
Product Weight 0.5 kg
Chip Material INGAN
Emitting Color RGBW
Power 1-4W
Viewing Angle 120°
Color Rendering Index (Ra) 95
Operating Temperature -20°C to 80°C
Storage Temperature -40°C to 110°C
Substrate Material Pure Copper
Product Description

We accept OEM and ODM service to customize any type of LED chip to meet your specific requirements.

High Power SMD RGBW LED Chip 1-4W 120° Viewing Angle 0
Technical Specifications

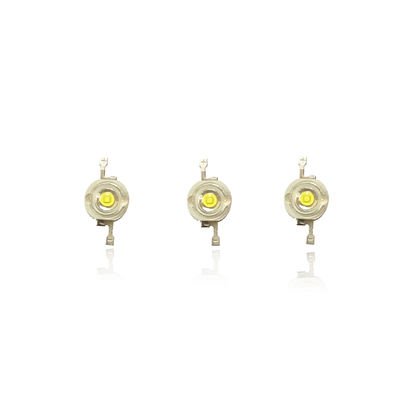

Parameter 1W/3W Specifications
Power 1W, 3W
CCT 2700-6500K; Red; Green; Blue; Yellow
Forward Current (IF) 350mA; 700mA
Forward Voltage (VF) 3.0-3.4V; 2.0-2.4V
Luminous Efficiency 130-150LM/W; 120-130LM/W; 60-80LM/W; 50-60LM/W; 30-50LM/W
Size 15mm
Viewing Angle 120°
High Power SMD RGBW LED Chip 1-4W 120° Viewing Angle 1

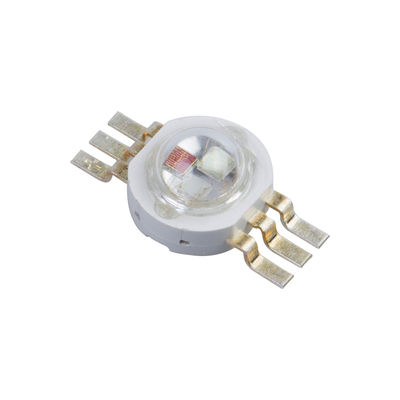

Parameter 3W RGB Specifications
Power 3W
Wavelength R=620-630nm; G=520-530nm; B=460-470nm
Luminous Flux R=40-50lm; G=80-90lm; B=20-40lm
Forward Current (IF) 350-700mA
Forward Voltage (VF) R=2.0-2.4V; G=3.0-3.4V; B=3.0-3.4V
Size 15mm
Viewing Angle 120°
High Power SMD RGBW LED Chip 1-4W 120° Viewing Angle 2
Parameter 4W RGBW Specifications
Power 4W
Wavelength R=620-630nm; G=520-530nm; B=460-470nm; W=3000K/6000K
Luminous Flux R=40-50lm; G=80-90lm; B=20-40lm; W=90-100lm
Forward Current (IF) 350-700mA
Forward Voltage (VF) R=2.0-2.4V; G=3.0-3.4V; B=3.0-3.4V; W=3.0-3.4V
Size 15mm
Viewing Angle 120°
Applications
High Power SMD RGBW LED Chip 1-4W 120° Viewing Angle 3 High Power SMD RGBW LED Chip 1-4W 120° Viewing Angle 4 High Power SMD RGBW LED Chip 1-4W 120° Viewing Angle 5 High Power SMD RGBW LED Chip 1-4W 120° Viewing Angle 6 High Power SMD RGBW LED Chip 1-4W 120° Viewing Angle 7 High Power SMD RGBW LED Chip 1-4W 120° Viewing Angle 8
Certifications & Company Profile
High Power SMD RGBW LED Chip 1-4W 120° Viewing Angle 9 High Power SMD RGBW LED Chip 1-4W 120° Viewing Angle 10 High Power SMD RGBW LED Chip 1-4W 120° Viewing Angle 11 High Power SMD RGBW LED Chip 1-4W 120° Viewing Angle 12
Product Packaging
High Power SMD RGBW LED Chip 1-4W 120° Viewing Angle 13 High Power SMD RGBW LED Chip 1-4W 120° Viewing Angle 14
Frequently Asked Questions
Q1: Do you supply OEM, ODM service?

A1: Yes, absolutely it can be realized. We focus on OEM & ODM service with more than 7 years of experience.

Q2: Are all the pictures real photos?

A2: Yes, the pictures of all products on this page are 100% real photos taken by us.

Q3: How can I get a quotation?

A3: Please provide details about your needs including product parameters, application, contact information and quantity. Our professional team will reply within one hour.

Q4: Is there any discount for bulk orders?

A4: Yes, we offer wholesale prices for bulk orders and customized products. Follow us on Alibaba to receive discount and coupon information.

Q5: Do you support drop shipping?

A5: Yes, we support drop shipping. Shipping costs are based on order volume and weight, which you can check on Alibaba or ask our team.

Q6: How to place an order?

A6: You can place orders directly on Alibaba or contact us for order details. We will respond within minutes.

Q7: What payment terms are available?

A7: We accept T/T, PayPal, Western Union and Secure Payment.

Q8: What is the lead time?

A8: Standard lead time is 10-15 working days depending on order quantity. Sample delivery typically takes 3 days.
