Factory Outlet COB LED Chip 3538 Five Color COB LED Chips 250W-350W 90-140lm/w 35*38MM LED Photograph Light With Fast Shipments

Factory Outlet COB LED Chip 3538 Five Color COB LED Chips 250W-350W 90-140lm/w 35*38MM LED Photograph Light With Fast Shipments
Factory Outlet COB LED Chip 3538 Five Color COB LED Chips 250W-350W 90-140lm/w 35*38MM LED Photograph Light With Fast Shipments
Factory Outlet COB LED Chip 3538 Five Color COB LED Chips 250W-350W 90-140lm/w 35*38MM LED Photograph Light With Fast Shipments Factory Outlet COB LED Chip 3538 Five Color COB LED Chips 250W-350W 90-140lm/w 35*38MM LED Photograph Light With Fast Shipments Factory Outlet COB LED Chip 3538 Five Color COB LED Chips 250W-350W 90-140lm/w 35*38MM LED Photograph Light With Fast Shipments Factory Outlet COB LED Chip 3538 Five Color COB LED Chips 250W-350W 90-140lm/w 35*38MM LED Photograph Light With Fast Shipments Factory Outlet COB LED Chip 3538 Five Color COB LED Chips 250W-350W 90-140lm/w 35*38MM LED Photograph Light With Fast Shipments Factory Outlet COB LED Chip 3538 Five Color COB LED Chips 250W-350W 90-140lm/w 35*38MM LED Photograph Light With Fast Shipments

Gambar besar :  Factory Outlet COB LED Chip 3538 Five Color COB LED Chips 250W-350W 90-140lm/w 35*38MM LED Photograph Light With Fast Shipments

Detail produk:
Tempat asal: Cina
Nama merek: LEARNEW
Sertifikasi: CE
Nomor model: SERI 3538
Syarat-syarat pembayaran & pengiriman:
Kuantitas min Order: 2000-10000 BUAH
Harga: negotiable
Kemasan rincian: Paket anti debu dan anti elektrostatik
Waktu pengiriman: 1-7 hari kerja untuk sampel, 1-4 minggu untuk kuantitas pesanan
Syarat-syarat pembayaran: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Menyediakan kemampuan: 500,000PCS per bulan

Factory Outlet COB LED Chip 3538 Five Color COB LED Chips 250W-350W 90-140lm/w 35*38MM LED Photograph Light With Fast Shipments

Deskripsi
Nama: CHIP LED COB Kekuatan: 250w
JIKA: 2A*5 VF: 24-26V
Ukuran Utuh: Ukuran 35X38MM Melayani: Disesuaikan
Menyoroti:

3538 COB LED Chip

,

250W-350W COB LED Chip

,

Five Color COB LED Chip

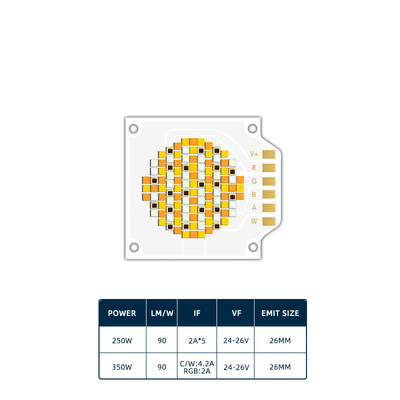

Model POWER CCT LM/W IF VF WHOLE SIZE EMIT SIZE VIEW ANGLE CRI SUBSTRATE

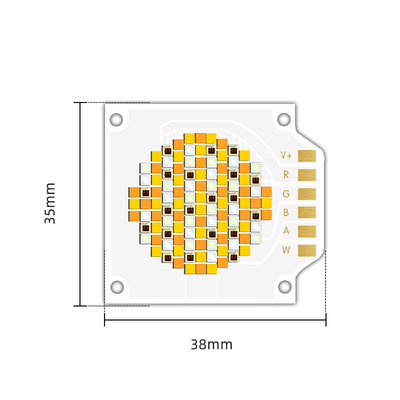

3538 SERIES 250W/350W Five colors COB 620nm/460nm/520nm/2700K /6500K 90 2A*5 24-26V 35X38MM 26MM 120° 95 Boss thermal and electrical separation copper substrate + aluminum nitride structure

COB (Chip on Board) LED is an LED packaging technology that directly connects LED chips to the PCB substrate instead of using traditional LED packaging. The advantages of five-color COB LEDs mainly include:

  • High brightness: COB LEDs integrate multiple LED chips on the same substrate, so they can provide higher brightness output.
  • Uniform light distribution: Since multiple LED chips are on the same substrate, COB LEDs can provide more uniform light distribution and reduce the light spot problem caused by multiple light sources.
  • Compact design: COB LEDs are more compact than traditional LED packages and are suitable for some applications with limited space.
  • Thermal management: COB LEDs integrate multiple LED chips on the PCB substrate, which helps to improve heat dissipation and extend the service life of LED lamps.
  • High color reproduction: Due to the combination of multiple LED chips, COB LEDs can provide a wider range of color temperature and color options with better color reproduction.

Factory Outlet COB LED Chip 3538 Five Color COB LED Chips 250W-350W 90-140lm/w 35*38MM LED Photograph Light With Fast Shipments 0Factory Outlet COB LED Chip 3538 Five Color COB LED Chips 250W-350W 90-140lm/w 35*38MM LED Photograph Light With Fast Shipments 1

Factory Outlet COB LED Chip 3538 Five Color COB LED Chips 250W-350W 90-140lm/w 35*38MM LED Photograph Light With Fast Shipments 2

Factory Outlet COB LED Chip 3538 Five Color COB LED Chips 250W-350W 90-140lm/w 35*38MM LED Photograph Light With Fast Shipments 3
