SMD3535 RGBW LED Chip 2W 3W 4W 120 Degree SANAN

SMD3535 RGBW LED Chip 2W 3W 4W 120 Degree SANAN
SMD3535 RGBW LED Chip 2W 3W 4W 120 Degree SANAN SMD3535 RGBW LED Chip 2W 3W 4W 120 Degree SANAN SMD3535 RGBW LED Chip 2W 3W 4W 120 Degree SANAN SMD3535 RGBW LED Chip 2W 3W 4W 120 Degree SANAN SMD3535 RGBW LED Chip 2W 3W 4W 120 Degree SANAN SMD3535 RGBW LED Chip 2W 3W 4W 120 Degree SANAN

Gambar besar :  SMD3535 RGBW LED Chip 2W 3W 4W 120 Degree SANAN

Detail produk:
Tempat asal: Guangdong, Cina
Nama merek: Learnew
Syarat-syarat pembayaran & pengiriman:
Kuantitas min Order: 10
Harga: $10
Kontak

SMD3535 RGBW LED Chip 2W 3W 4W 120 Degree SANAN

Deskripsi
Suhu warna: 620-630nm Tegangan input: 2.0-3.4V
Kemanjuran bercahaya: 100 lm/w Jangka hidup: 10000 jam
Berat produk: 0,001 kg Bahan chip: Algainp
Memancarkan warna: Rgbw Fluks bercahaya: 100 lm
Atenuasi optik: 0,001% Kekuatan: 2W, 3W, 4W
Sudut pandang: 120 ° Indeks rendering warna: 90 RA
Suhu operasi: -20 - 60 ℃ Suhu penyimpanan: -40 - 80 ℃
Arus ke depan: 150mA/300mA
Menyoroti:

SMD3535 RGBW LED chip 4W

,

SANAN SMD LED chip 120 degree

,

RGBW LED chip 2W 3W

SMD3535 SMD LED RGB RGBW 2W 3W 4W SANAN CHIP 120DEG SMD LED Chips for LED Stage Light
Product Specifications
Attribute Value
Color Temperature(CCT) 620-630nm
Input Voltage(V) 2.0-3.4V
Warranty 3-Year
Type SMD LED
Support Dimmer Yes
Lighting solutions service Lighting and circuitry design, LitePro DLX layout, auto CAD layout
Luminous Efficacy(lm/w) 100
Lifespan (hours) 10000
Product Weight (kg) 0.001
Chip Material AlGaInP
Emitting Color RGBW
Luminous Flux(lm) 100
Optical Attenuation(%) 0.001
Power 2W, 3W, 4W, 2W 3W 4W
Viewing Angle(°) 120
Color Rendering Index(Ra) 90
Color Temperature 2800-7000K
Operating Temperature(℃) -20 - 60
Storage Temperature(℃) -40 - 80
WHOLE SIZE 3.5*3.5MM
Lighting Area R1.5MM
IF 150mA/300mA
CCT R=620-630nm G=520-530nm B=450-470nm W=6000-7000K
LUMINUOUS EFF R=30-40lm G=60-70lm B=20-30lm W=70-90lm
CHIPS SANAN CHIP
SUBSTRATE PCT
Product Details
We accept OEM and ODM service to customize any type of LED CHIP.
SMD3535 RGBW LED Chip 2W 3W 4W 120 Degree SANAN 0 SMD3535 RGBW LED Chip 2W 3W 4W 120 Degree SANAN 0
Product Type: 3535 SMD LED RGB/RGBW
Power: 2W/3W/4W
CCT: R=620-630nm G=520-530nm B=450-470nm W=6000-7000K
LUMINUOUS EFF: R=30-40lm G=60-70lm B=20-30lm W=70-90lm
IF: 150mA
VF: R=2.0-2.4V G=3.0-3.4V B=3.0-3.4V W=3.0-3.4V

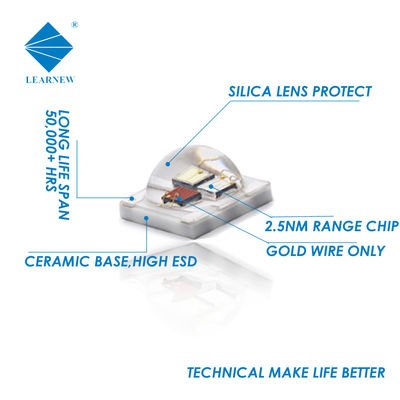

Design Advantages
  • PCT leadframe
  • High ESD pass
  • Standard A Class chips
  • Cost performance
  • Gold wire bond
  • Easy reflow soldering

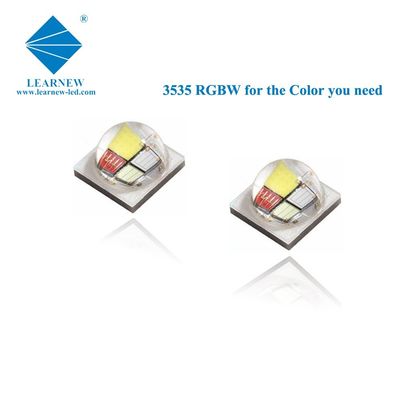

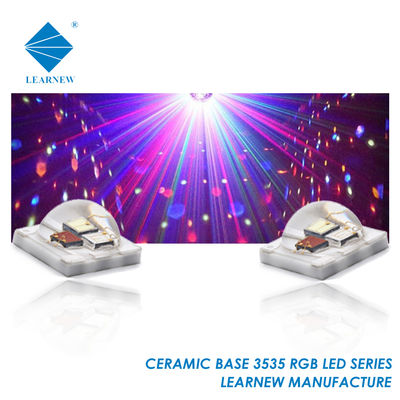

Product Images
SMD3535 RGBW LED Chip 2W 3W 4W 120 Degree SANAN 2 SMD3535 RGBW LED Chip 2W 3W 4W 120 Degree SANAN 2
Certifications
SMD3535 RGBW LED Chip 2W 3W 4W 120 Degree SANAN 4 SMD3535 RGBW LED Chip 2W 3W 4W 120 Degree SANAN 4
Company Profile
SMD3535 RGBW LED Chip 2W 3W 4W 120 Degree SANAN 6 SMD3535 RGBW LED Chip 2W 3W 4W 120 Degree SANAN 6 SMD3535 RGBW LED Chip 2W 3W 4W 120 Degree SANAN 8 SMD3535 RGBW LED Chip 2W 3W 4W 120 Degree SANAN 8
Product Packaging
SMD3535 RGBW LED Chip 2W 3W 4W 120 Degree SANAN 10 SMD3535 RGBW LED Chip 2W 3W 4W 120 Degree SANAN 10 SMD3535 RGBW LED Chip 2W 3W 4W 120 Degree SANAN 12 SMD3535 RGBW LED Chip 2W 3W 4W 120 Degree SANAN 12
Frequently Asked Questions
Q1: Do you supply OEM,ODM service?
A1: YES, absolutely it can be realized. We focus on OEM & ODM service more than 7 years.
Q2: All the pictures are real photo?
A2: Yes, the pictures of all products on this page are 100% real shoot by us.
Q3: How can I get a quotation from you?
A3: Please kindly leave us messages about your needs, including products parameters, application, your contact way and quantity, our professional team will reply you in one hour here.
Q4: Is there any discount for bulk order?
A4: Yes, if you need bulk order or you want customized products, we can provide wholesale price.
Q5: Do you support drop shipping and how much is the shipping cost?
A5: Yes, we support drop shipping. The shipping costs are based on your order's volume and weight.
Q6: How to place an order?
A6: You can check the shipping cost and discount information online, and place order directly or contact us for the order details.
Q7: What payment terms are available?
A7: T/T, PayPal, Western Union and Secure Payment.
Q8: What about the lead time?
A8: It depends on the order quantity. In general, lead time is about 10-15 working days. For samples in standard, the delivery could be 3 days.
