Sanan SMD3535 LED Chip 3W 4W White Ceramic Substrate 120° Viewing Angle

Sanan SMD3535 LED Chip 3W 4W White Ceramic Substrate 120° Viewing Angle
Sanan SMD3535 LED Chip 3W 4W White Ceramic Substrate 120° Viewing Angle Sanan SMD3535 LED Chip 3W 4W White Ceramic Substrate 120° Viewing Angle Sanan SMD3535 LED Chip 3W 4W White Ceramic Substrate 120° Viewing Angle Sanan SMD3535 LED Chip 3W 4W White Ceramic Substrate 120° Viewing Angle Sanan SMD3535 LED Chip 3W 4W White Ceramic Substrate 120° Viewing Angle Sanan SMD3535 LED Chip 3W 4W White Ceramic Substrate 120° Viewing Angle

Gambar besar :  Sanan SMD3535 LED Chip 3W 4W White Ceramic Substrate 120° Viewing Angle

Detail produk:
Tempat asal: Guangdong, Cina
Nama merek: Learnew
Syarat-syarat pembayaran & pengiriman:
Kuantitas min Order: 10

Sanan SMD3535 LED Chip 3W 4W White Ceramic Substrate 120° Viewing Angle

Deskripsi
Tegangan input: 3.0-3.4v Kemanjuran bercahaya: 240 lm/w
Fluks bercahaya: 240-280lm; 350-400lm Kekuatan: 3W, 4W
Sudut pandang: 120 ° Indeks rendering warna: 70/80/90/95
Suhu operasi: -20 - 100 ℃ Suhu penyimpanan: -20 - 80 ℃
Ukuran: 3.5*3.5mm saat ini: 700mA;1000mA
Bahan chip: Ingan Substrat: Keramik
Ukuran chip: R3.0MM Atenuasi optik: 0,1%
Berat produk: 0,01kg
Menyoroti:

Sanan SMD3535 LED chip 3W white

,

ceramic substrate LED chip 4W

,

120° viewing angle SMD LED

Gold Wire Bond Sanan SMD3535 High Lumen Flash Light Spare Parts Customs Wire+connector Single Color White or R/G/B Led Chip
Product Specifications
Color Temperature (CCT) 2700K (Soft Warm White), 3500K (Warm White), 4100K (Neutral White), 5000K (Daylight), 6000K (Daylight Alert)
Input Voltage 3.0-3.4V
Warranty 2-Year
Type SMD LED
Support Dimmer Yes
Lighting Solutions Service Lighting and circuitry design, LitePro DLX layout, auto CAD layout
Luminous Efficacy 240 lm/w
Lifespan 2 years
Product Weight 0.01 kg
Chip Material INGAN
Emitting Color White
Luminous Flux 240-280LM; 350-400LM
Power 3W, 4W
Viewing Angle 120°
Color Rendering Index (Ra) 70/80/90/95
Operating Temperature -20°C to 100°C
Storage Temperature -20°C to 80°C
Substrate Ceramic
Size 3.5*3.5MM
Chip Brand SANAN 55mil/SANAN 45mil
Product Description

We accept OEM and ODM service to customize any type of LED chip.

Sanan SMD3535 LED Chip 3W 4W White Ceramic Substrate 120° Viewing Angle 0 Sanan SMD3535 LED Chip 3W 4W White Ceramic Substrate 120° Viewing Angle 1
Design Advantages
  • Ceramic leadframe
  • High ESD pass
  • Standard A Class chips
  • Cost performance
  • Gold wire bond
  • Easy reflow soldering

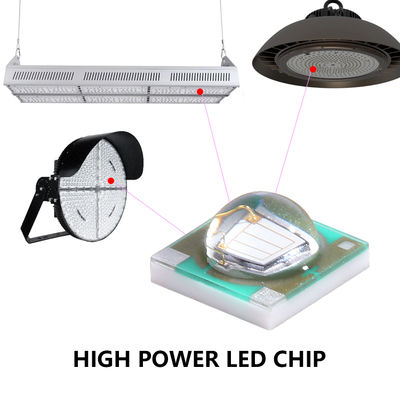

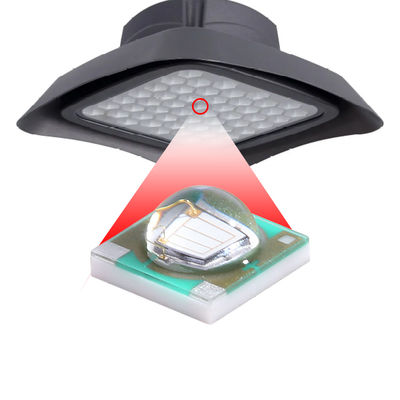

Applications
  • LED grow light
  • LED torch
  • LED stage light
  • LED streetlight
  • LED Landscape lighting
  • LED spotlight
Sanan SMD3535 LED Chip 3W 4W White Ceramic Substrate 120° Viewing Angle 2 Sanan SMD3535 LED Chip 3W 4W White Ceramic Substrate 120° Viewing Angle 3 Sanan SMD3535 LED Chip 3W 4W White Ceramic Substrate 120° Viewing Angle 4
Company Information
Sanan SMD3535 LED Chip 3W 4W White Ceramic Substrate 120° Viewing Angle 5 Sanan SMD3535 LED Chip 3W 4W White Ceramic Substrate 120° Viewing Angle 6 Sanan SMD3535 LED Chip 3W 4W White Ceramic Substrate 120° Viewing Angle 7 Sanan SMD3535 LED Chip 3W 4W White Ceramic Substrate 120° Viewing Angle 8

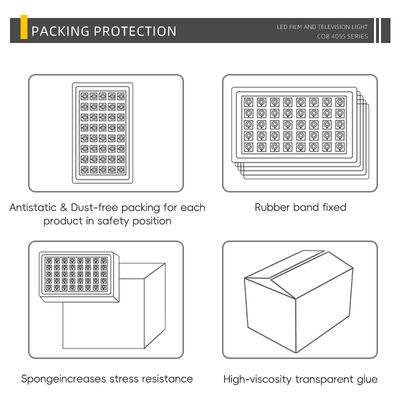

Product Packaging
